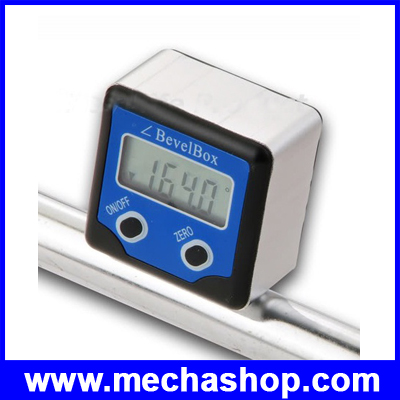

MSD004 : เครื่องมือวัดองศา เครื่องมือวัดมุมดิจิตอล 360องศา Digital Bevel Box Gauge Angle Protractor Inclinometer

1,200 บาท
มีสินค้าอยู่ 10
เครื่องมือวัดองศา เครื่องมือวัดมุมดิจิตอล 360องศา Digital Bevel Box Gauge Angle Protractor Inclinometer

>> เช็คสต๊อคสินค้า <<

เครื่องมือวัดองศาเหมาะสำหรับ การวัดองศา หรือการวัดมุมการวัดองศาเพื่อการติดตั้งหรือประกอบชิ้นงาน วัสดุ ทั้งนี้เครื่องวัดองศา วัดมุมดิจิตอลสามารถใช้งานได้เหมาะสมกับช่างไม้ ช่างปูน ช่างเฟอร์นิเจอร์ ช่างติดตั้งอุปกรณ์ ช่างเชือมเหล็ก หรือผู้ใช้งานทั่วไป ก็ยังสามารถใช้งานเครื่องมือวัดองศาได้ เครื่องมือวัดองศา วัดมุมดิจิตอล ใช้งานง่ายพกพาสะดวก รายละเอียด เครื่องมือวัดองศา:
  • This Bevel Box is a Mini Digital Protractor that provides digital reading between ±180.0° (0 ~ 360°) on table saws and other shop equipment instantly. You can simply place the meter on a reference surface zero, then it will give a result of measured angle within 0.1° accuracy.
  • The extra large LCD is convenient to read and light weight and small design is easy for you to carry. Measuring plane containing strong disk magnet material can stick to the surface measured. It is especially easy to measure bevel angle of miter saw, examine and repair the automobile and so on.
  • Drainage angles and run-off slopes
  • Tool setting on Lathes
  • Setting blade angle of Circular Saws
  • Setting blade angle of Miter Saws
  • Setting work piece angle for milling
  • Grader and tractor work alignment
  • Platform monitoring
  • Check drill press table setting, table saw, jointer table, band saw, jointer fence or band saw table
ข้อมูลทางเทคนิค:
  • Wide measuring range of ±180° (0 ~ 360°) with ± 0.1 Repeatability
  • Zero button to calibrate the gauge to any reference surface
  • 3 Powerful built-in magnets on the base of the main unit to attach any magnetic surfaces
  • Fast and accurate measurements
  • Light weight portable design
  • Measuring Range: ± 180° (0 ~ 360°)
  • Resolution: 0.1°
  • Repeatability: ± 0.1°
  •  Working Current: < 100 µA
  • Power: 3V CR2032 Lithium Battery
  • Dimension: approx. 50 (L) x 50 (W) x 33 (D) mm (1.97' x 1.97' x 1.29' inch)
  • Weight: approx. 117 g (4.12 oz)
สินค้าประกอบด้วย
  • เครื่องมือวัดองศา จำนวน1เครื่อง
  • คูมือการใช้งานเบื้องต้น
รับประกันสินค้า 3 เดือน

ข้อมูลจำเพาะ

Information on technical characteristics, the delivery set, the country of manufacture and the appearance of the goods is for reference only and is based on the latest information available at the time of publication.
