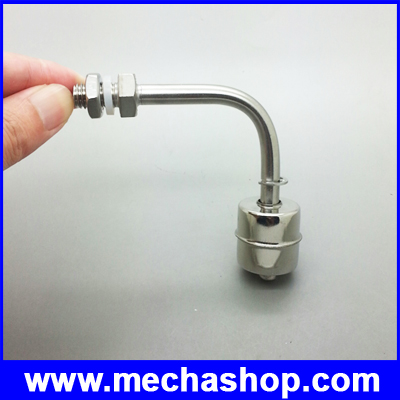

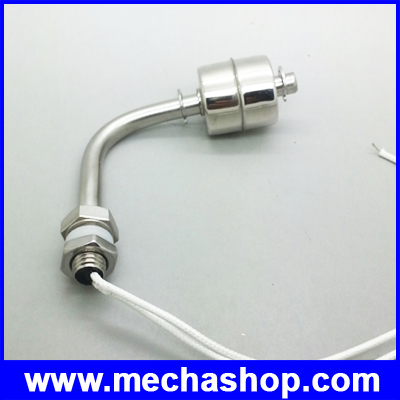

WLS005 : เซนเซอร์ระดับน้ำ เซนเซอร์เช็คระดับน้ำ เซนเซอร์ระดับน้ำ ลูกลอย Liquid Float Switch Water Level Sensor stainless steel

220 บาท
มีสินค้าอยู่ 10
เซนเซอร์ระดับน้ำ เซนเซอร์เช็คระดับน้ำ เซนเซอร์ระดับน้ำ ลูกลอย Liquid Float Switch Water Level Sensor stainless steel

>> เช็คสต๊อคสินค้า <<

เซนเซอร์ระดับน้ำ นำไปประยุกต์ใช้งานได้หลากหลาย ข้อมูลเซนเซอร์ระดับน้ำ:
  • Contract rating (Max): 10W
  • Switching voltage(Max): 100V
  • Switching current(Max): 0.5A
  • Breakdown voltage(Max): 220V
  • Carry current(Max): 1.0A
  • Contract resistance(Max): 100mΩ
  • Temperature rating: -30~ +125°C
  • Material: stainless steel
  • Float Ball Size : 28 * 26mm
  • Cable Length: About 30cm
  • Net Weight : 56g
หมายเหตุ: การนำไปต่อใช้งานในกรณี ที่ใช้กับโหลดสูงเกินกว่าสเปคที่ระบุไว้ แนะนำให้ต่อร่วมกับ Relay หรือ Mangnetic ซึ่งสามารถทนกระแสได้สูงกว่า Wiring Diagram WLS005 :Liquid Float Switch Water Level Sensor stainless steel https://lh3.googleusercontent.com/-Z6aWqk-Rq30/V0Z_bJfbHRI/AAAAAAAAEak/nmlSquZBzZYdUGrrX5Qq6cSiTwba1ffFwCCo/s450/WLS005-s.jpg รับประกันสินค้า 1 เดือน
