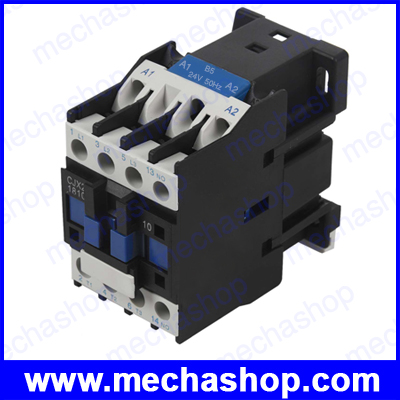

MSP029 : แมกเนติกคอนแทคเตอร์ CJX2-1810 LC1 AC Contactor 18A 3 Phase 3-Pole NO Coil Voltage 24VAC 50/60Hz Din Rail Mounted 3P+1NO

230 บาท
มีสินค้าอยู่ 4
แมกเนติกคอนแทคเตอร์ CJX2-1810 LC1 AC Contactor 18A 3 Phase 3-Pole NO Coil Voltage 24VAC 50/60Hz Din Rail Mounted 3P+1NO

>> เช็คสต๊อคสินค้า <<

  Features
  • High quality: AC contactors are made of high quality materials for durability.
  • Good performance: AC contactors have high sensitivity and higher load carrying capacity.
  • Strong conductivity: Stable connection contact has strong electrical conductivity.
  • Control load: This product is an industrial appliance that uses a coil to flow a current to create a magnetic field that closes
  • the contacts to achieve a controlled load of the electrical installation.
  • Applications: AC contactors are commonly used in power, distribution and power applications.
Specifications:
  • Model: CJX2-1810
  • Coil Power Supply: 24V
  • Rated working current: 18A
  • Coil Frequency: 50/60Hz
  • Nnumber: 3
  • Conventional Thermal Current(Ith): 32A
  • Nominal Insulation Voltage(Ui): AC 660V
  • AC-3 Coil Voltage: 24-380V
  • Waterproof Grade: IP20
  • Operation Frequency: 1200times/hour
  • Size: approx. 45 x 80 x 75 mm
รับประกันสินค้า 1 เดือน

ข้อมูลจำเพาะ

Information on technical characteristics, the delivery set, the country of manufacture and the appearance of the goods is for reference only and is based on the latest information available at the time of publication.
